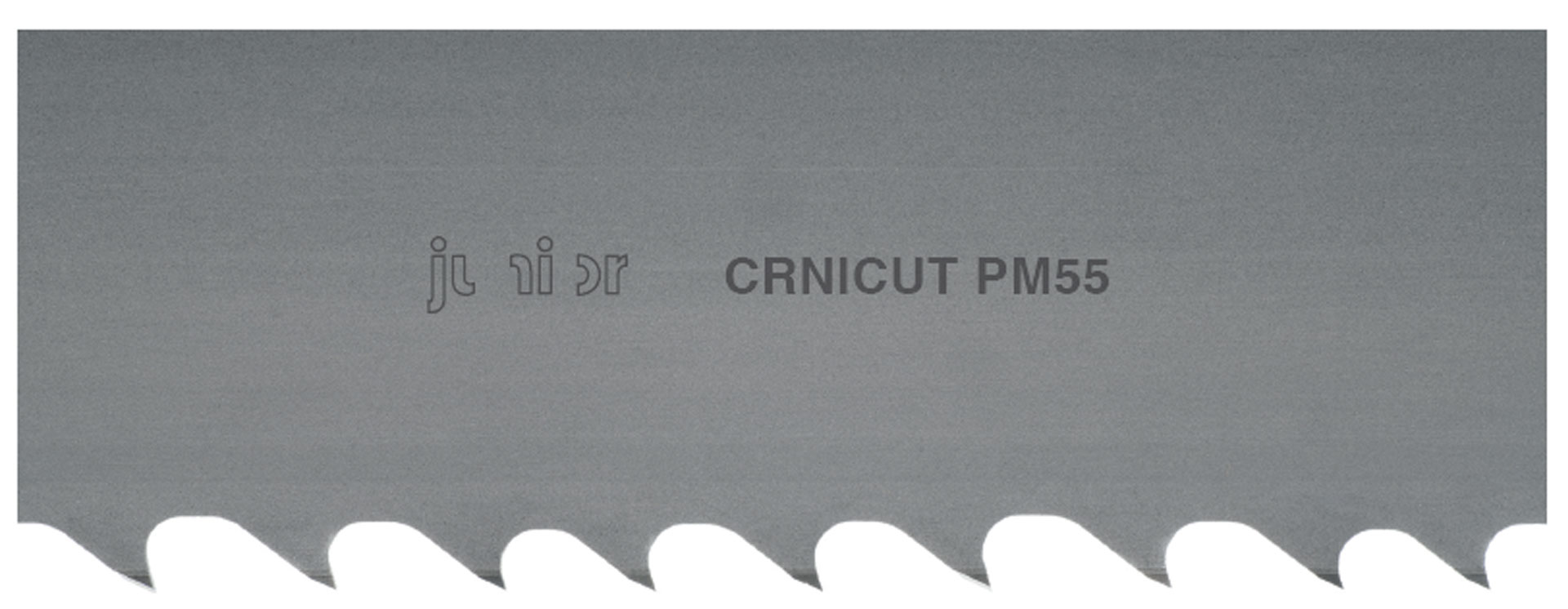

CRNICUT
PM55 PREMIUM

The bimetal premium tool for extreme requirements

  Our solution for
  • Medium-size to large workpieces
  • High and ultra-high alloy workpieces
  • Materials WITH residual stress, e.g. Duplex
  Advantages
  • Higher performance
  • Long service life
  • Low-vibration cutting
  • Excellent cutting surface for difficult-to-cut materials
  • Heat resistance and wear resistance
  Features
  • Chamfered pre-cutter and multispan geometry
  • Stepped tooth set
  • Extremely resistant, stable, tough cutting edge
  • Innovative, state-of-the-art cutting material: PM55 PREMIUM
No. Width x Thickness
 ZpZ /tpi
708 7205 1605 5205 2305 3405
mm inches 0,75 / 1,25 1,1 / 1,6 1,5 / 2 2 / 3 3 / 4
034110 34 x 1,1 1 3/8 x .042 M+ M+
041130 41 x 1,3 1 5/8 x .050 M+ M+
054130 54 x 1,3 2 1/8 x .050 M+ M+
054160 54 x 1,6 2 1/8 x .063 M+ M+ M+
067160 67 x 1,6 2 5/8 x .063 M+ M+ M+
080160 80 x 1,6 3 1/8 x .063 M+ M+
Contact length (mm) > 600 300 – 600 200 – 450 130 – 350 80 – 180



No. Sample  708      034    110   2305     rotQuality   BlauWidth x Thickness   Gruen Tooth pitch
   CrNiCut  34 x 1,1 2 / 3 ZpZ
