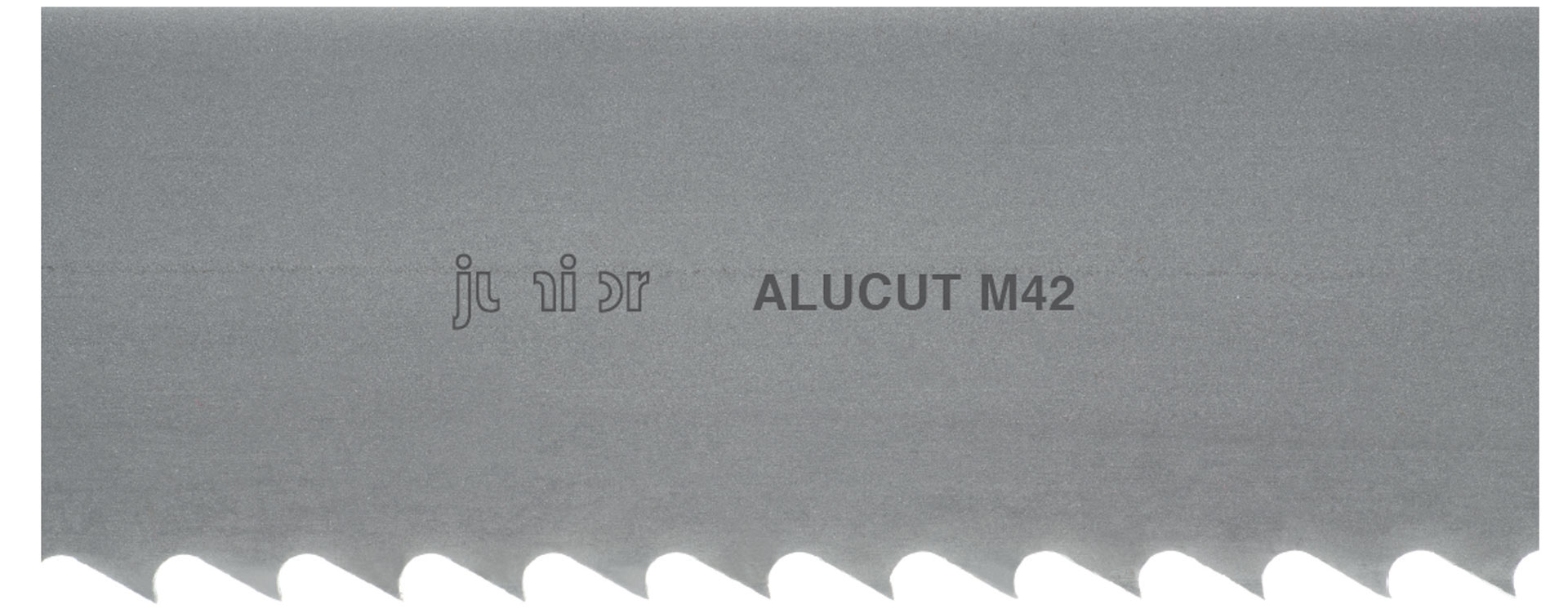

ALUCUT M42

The special tool for aluminium / non-ferrous metals




  Our solution for
  • Non-ferrous metals
  • Materials with tensile strength up to 1400 N/mm²
  • Manual sawing of sprues and risers
  Vorteile
  • Prevents the bandsaw blade from binding in the material
  • Low energy consumption
  • Long service life, excellent chip formation
  Merkmale
  • Wider tooth set for wider cutting channel
  • Available in normal toothing only

No.  Width x Thickness
ZpZ / tpi
770  2500 0200 0300 0400
mm inches 1,25 2 3 4
013090  13 x 0,9 1/2 x .035 K K
020090  20 x 0,9 3/4 x .035 K
027090  27 x 0,9 1 1/16 x .035 K K K
027110  27 x 1,1 1 1/16 x .042 K
034110  34 x 1,1 1 3/8 x .042 K K K
041130  41 x 1,3 1 5/8 x .050 K
Contact length (mm) > 600 200 – 400 120 – 200 80 – 120



Sample-No.  770      027    090   0200     rot Quality   Blau Width x Thickness   Gruen Tooth pitch
   Alucut  27 x 0,9 2 ZpZ
