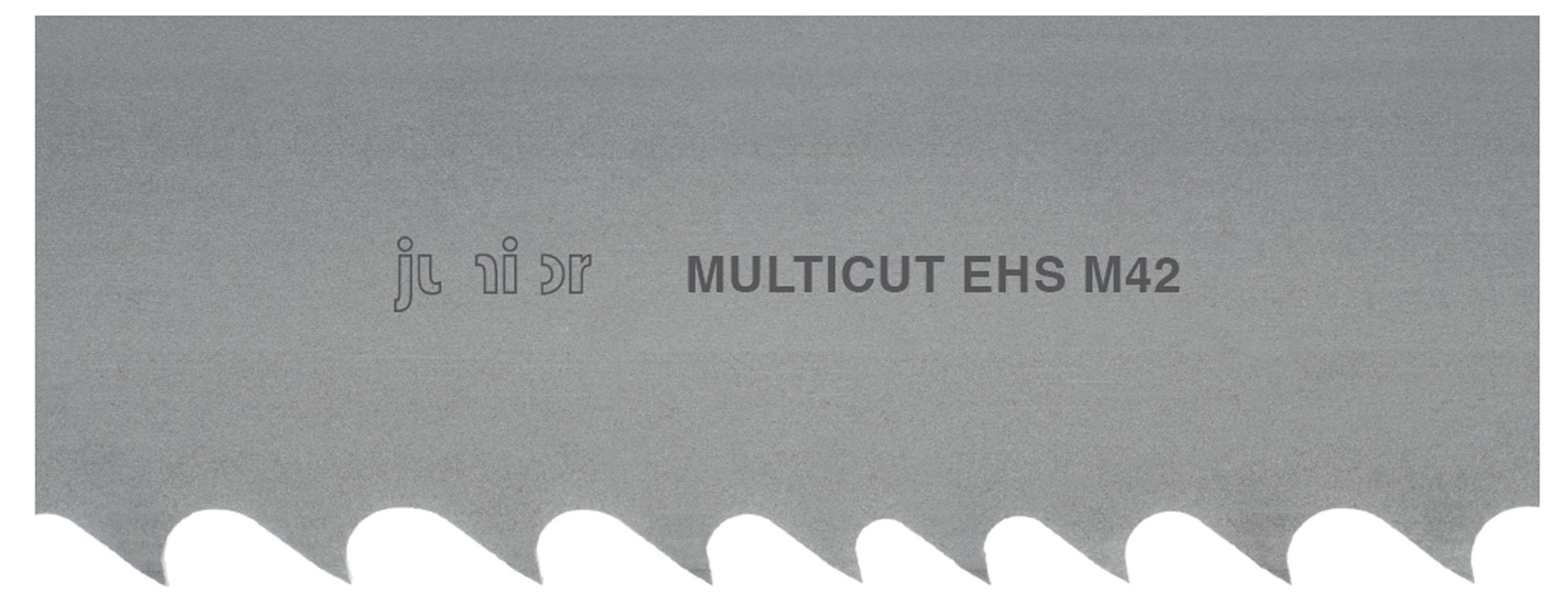

MULTICUT EHS M42

The special tool for materials with residual stress

  Our solution for
  • Cutting beams under tension
  • Materials with tensile strength up to 1400 N/mm²
  • Plastics
  Advantages
  • Prevents the bandsaw blade from binding in the material
  Merkmale
  • Wider tooth set for wider cutting channel
  • Available only with Vario toothing
No.  Width x Thickness ZpZ / tpi
767  2300 3400 4600
mm inches 2 / 3 3 / 4 4 / 6
027090  27 x 0,9 1 1/16 x .035 K K
034110  34 x 1,1 1 3/8 x .042 K K K
041130 41 x 1,3 1 5/8 x .050 K K K
054130  54 x 1,3 2 1/8 x .050 K
054160  54 x 1,6 2 1/8 x .063 K K K
067160  67 x 1,6 2 5/8 x .063 K K
Contact length (mm) 130 – 350 80 – 180 50 – 120



No.-Sample:   767      027    090   3400     rot Quality   Blau Width x Thickness   GruenTooth pitch
   Multicut
EHS		  27 x 0,9 3/4 ZpZ
